Technical specifications

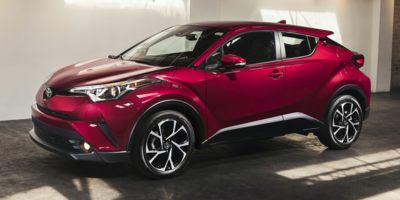

Toyota C-HR FWD XLE

Overview
View less
Collapse all
Vehicle
Emissions
•
G/km Of CO2 Emissions: 189
•
Kg/yr of CO2 Emissions @ 20K km/year: N/A
Vehicle
•
EPA Classification: Compact Cars
Powertrain
Transmission
•
Drivetrain: Front Wheel Drive
•
Trans Order Code:
•
Trans Type: 1
•
Trans Description Cont.: CVT w/OD
•
Trans Description Cont. Again:
•
First Gear Ratio (:1): N/A
•
Reverse Ratio (:1): N/A
•
Clutch Size: N/A in
•
Final Drive Axle Ratio (:1): N/A
•
Transfer Case Gear Ratio (:1), High: N/A
•
Transfer Case Gear Ratio (:1), Low: N/A
Mileage
•
EnerGuide Estimate - City: 8.7 L/100 km
•
EnerGuide Estimate - Hwy: 7.5 L/100 km
•
Cruising Range - City: 1432.15 mi
•
Cruising Range - Hwy: 1661.30 mi
•
EnerGuide Estimate Equivalent - Combined: N/A
•
EnerGuide Estimate Equivalent - Hwy: N/A
•
EnerGuide Estimate Equivalent - City: N/A
Engine
•
Engine Order Code:
•
Engine Type: Regular Unleaded I-4
•
Displacement: 2.0 L/121
•
Fuel System: Sequential MPI
•
SAE Net Horsepower @ RPM: 144 @ 6100
•
SAE Net Torque @ RPM: 139 @ 3800
Electrical
•
Cold Cranking Amps @ 0° F (Primary): N/A
•
Maximum Alternator Capacity (amps): N/A
Cooling System
•
Total Cooling System Capacity: N/A qts
Dimensions
Interior Dimensions
•
Passenger Capacity: 5
•
Passenger Volume: 83.8 ft³
•
Front Head Room: 38.1 in
•
Front Leg Room: 43.5 in
•
Front Shoulder Room: 49 in
•
Front Hip Room: N/A in
•
Second Head Room: 38.3 in
•
Second Leg Room: 31.7 in
•
Second Shoulder Room: 52.5 in
•
Second Hip Room: N/A in
Exterior Dimensions
•
Wheelbase: 103.9 in
•
Length, Overall: 171.3 in
•
Width, Max w/o mirrors: 70.7 in
•
Height, Overall: 61.6 in
•
Track Width, Front: 60.6 in
•
Track Width, Rear: 60.6 in
•
Min Ground Clearance: N/A in
•
Rear Door Opening Height: N/A in
•
Rear Door Opening Width: N/A in
•
Liftover Height: N/A in
Cargo Area Dimensions
•
Cargo Area Length @ Floor to Seat 1: N/A in
•
Cargo Area Length @ Floor to Seat 2: N/A in
•
Cargo Area Length @ Floor to Seat 3: N/A in
•
Cargo Area Width @ Beltline: N/A in
•
Cargo Box Width @ Wheelhousings: N/A in
•
Cargo Box (Area) Height: N/A in
•
Cargo Volume to Seat 1: 36.4 ft³
•
Cargo Volume to Seat 2: 19 ft³
•
Cargo Volume to Seat 3: 19 ft³
Chassis
Weight Information
•
Base Curb Weight: 3300 lbs
•
Curb Weight - Front: N/A lbs
•
Curb Weight - Rear: N/A lbs
•
Curb Weight: N/A lbs
•
Total Option Weight: 0.00 lbs
Trailering
•
Dead Weight Hitch - Max Trailer Wt.: N/A lbs
•
Dead Weight Hitch - Max Tongue Wt.: N/A lbs
•
Wt Distributing Hitch - Max Trailer Wt.: N/A lbs
•
Wt Distributing Hitch - Max Tongue Wt.: N/A lbs
•
Maximum Trailering Capacity: N/A lbs
Suspension
•
Suspension Type - Front: Strut
•
Suspension Type - Rear: Double Wishbone
•
Suspension Type - Front (Cont.): Strut
•
Suspension Type - Rear (Cont.): Double Wishbone
•
Shock Absorber Diameter - Front: N/A mm
•
Shock Absorber Diameter - Rear: N/A mm
•
Stabilizer Bar Diameter - Front: N/A in
•
Stabilizer Bar Diameter - Rear: N/A in
Tires
•
Front Tire Order Code:
•
Rear Tire Order Code:
•
Spare Tire Order Code:
•
Front Tire Size: P215/60HR17
•
Rear Tire Size: P215/60HR17
•
Spare Tire Size: Compact
Wheels
•
Front Wheel Size: 17 X 6.5 in
•
Rear Wheel Size: 17 X 6.5 in
•
Spare Wheel Size: Compact in
•
Front Wheel Material: Aluminum
•
Rear Wheel Material: Aluminum
•
Spare Wheel Material: Steel
Steering
•
Steering Type: Rack-Pinion
•
Steering Ratio (:1), Overall: N/A
•
Lock to Lock Turns (Steering): N/A
•
Turning Diameter - Curb to Curb: 34.1 ft
•
Turning Diameter - Wall to Wall: N/A ft
Brakes
•
Brake Type: 4-Wheel Disc
•
Brake ABS System: 4-Wheel
•
Brake ABS System (Second Line): N/A
•
Disc - Front (Yes or ): Yes
•
Disc - Rear (Yes or ): Yes
•
Front Brake Rotor Diam x Thickness: 11.7 in
•
Rear Brake Rotor Diam x Thickness: 11.1 in
•
Drum - Rear (Yes or ):
•
Rear Drum Diam x Width: in
Fuel Tank
•
Fuel Tank Capacity, Approx: 53 L
•
Aux Fuel Tank Capacity, Approx: N/A L
Color combinations
View less
Collapse all
Exterior
Silver Knockout Metallic
Interior
Black
Exterior
Blue Eclipse Metallic
Interior
Black
Exterior
Ruby Flare Pearl
Interior
Black
Exterior
Radiant Green Mica w/White Roof
Interior
Black
Exterior
Magnetic Grey Metallic
Interior
Black
Exterior
Black Sand Pearl
Interior
Black
Exterior
Blue Eclipse Metallic w/White Roof
Interior
Black
Exterior
Blizzard Pearl
Interior
Black
Exterior
Ruby Flare Pearl w/White Roof
Interior
Black
Standard equipment
View less
Collapse all
MECHANICAL
•
Engine: 2.0L I-4 DOHC 16-Valve
•
Transmission: Continuous Variable (CVTi-S) -inc: intelligent shift
•
Axle Ratio: TBA
•
GVWR: 1964 kgs (4330 lbs)
•
Transmission w/Driver Selectable Mode, Sequential Shift Control and Oil Cooler
•
Front-Wheel Drive
•
Battery w/Run Down Protection
•
836# Maximum Payload
•
Gas-Pressurized Shock Absorbers
•
Front And Rear Anti-Roll Bars
•
Electric Power-Assist Speed-Sensing Steering
•
53 L Fuel Tank
•
Single Stainless Steel Exhaust
•
Strut Front Suspension w/Coil Springs
•
Double Wishbone Rear Suspension w/Coil Springs
•
4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
•
Brake Actuated Limited Slip Differential
EXTERIOR
•
Wheels: 17" Aluminum Alloy
•
Tires: P215/60R17
•
Wheels w/Machined w/Painted Accents Accents
•
Steel Spare Wheel
•
Compact Spare Tire Mounted Inside Under Cargo
•
Clearcoat Paint
•
Body-Coloured Front Bumper w/Black Rub Strip/Fascia Accent
•
Body-Coloured Rear Bumper w/Black Rub Strip/Fascia Accent
•
Black Bodyside Cladding and Black Wheel Well Trim
•
Black Side Windows Trim and Black Front Windshield Trim
•
Body-Coloured Door Handles
•
Body-Coloured Power Heated Side Mirrors w/Manual Folding and Turn Signal Indicator
•
Fixed Rear Window w/Fixed Interval Wiper and Defroster
•
Light Tinted Glass
•
Variable Intermittent Wipers
•
Fully Galvanized Steel Panels
•
Splash Guards
•
Wing Spoiler
•
Black Grille
•
Front License Plate Bracket
•
Liftgate Rear Cargo Access
•
Tailgate/Rear Door Lock Included w/Power Door Locks
•
Fully Automatic Projector Beam Halogen Daytime Running Auto High-Beam Headlamps w/Delay-Off
ENTERTAINMENT
•
Radio: AM/FM Stereo w/7" Display Screen -inc: shark fin type antenna, voice recognition, audio auxiliary input jack, USB audio input, Bluetooth capability, 6 speakers, multifunctional steering wheel controls, Aha audio system internet radio, POI search and Gracenote database
•
Radio w/Seek-Scan, Clock, Speed Compensated Volume Control and Radio Data System
•
Streaming Audio
•
2 LCD Monitors In The Front
INTERIOR
•
Heated Sport Front Bucket Seats -inc: driver and passenger seat fore/aft, recline, vertical adjustment and driver power lumbar support
•
6-Way Driver Seat
•
6-Way Passenger Seat
•
60-40 Folding Bench Front Facing Fold Forward Seatback Rear Seat
•
Manual Tilt/Telescoping Steering Column
•
Gauges -inc: Speedometer, Odometer, Engine Coolant Temp, Tachometer, Trip Odometer and Trip Computer
•
Power Rear Windows
•
Leather/Piano Black Steering Wheel
•
Front Cupholder
•
Rear Cupholder
•
Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry, Illuminated Ignition Switch and Panic Button
•
Remote Releases -Inc: Mechanical Fuel
•
Cruise Control w/Steering Wheel Controls
•
Distance Pacing w/Traffic Stop-Go
•
Dual Zone Front Automatic Air Conditioning
•
HVAC -inc: Underseat Ducts
•
Illuminated Glove Box
•
Driver Foot Rest
•
Fabric Seat Material
•
Interior Trim -inc: Metal-Look/Piano Black Instrument Panel Insert and Metal-Look Interior Accents
•
Full Cloth Headliner
•
Leather/Metal-Look Gear Shifter Material
•
Day-Night Auto-Dimming Rearview Mirror
•
Driver And Passenger Visor Vanity Mirrors w/Driver And Passenger Illumination, Driver And Passenger Auxiliary Mirror
•
Full Floor Console w/Covered Storage and 2 12V DC Power Outlets
•
Front Map Lights
•
Fade-To-Off Interior Lighting
•
Full Carpet Floor Covering -inc: Carpet Front And Rear Floor Mats
•
Carpet Floor Trim
•
Cargo Area Concealed Storage
•
Rigid Cargo Cover
•
Cargo Space Lights
•
Instrument Panel Bin, Driver And Passenger Door Bins
•
Power 1st Row Windows w/Front And Rear 1-Touch Up/Down
•
Delayed Accessory Power
•
Power Door Locks w/Autolock Feature
•
Trip Computer
•
Outside Temp Gauge
•
Analog Display
•
Seats w/Cloth Back Material
•
Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
•
Front Centre Armrest
•
2 Seatback Storage Pockets
•
Engine Immobilizer
•
2 12V DC Power Outlets
•
Air Filtration
SAFETY
•
VSC Electronic Stability Control (ESC)
•
ABS And Driveline Traction Control
•
Side Impact Beams
•
Dual Stage Driver And Passenger Seat-Mounted Side Airbags
•
Toyota Safety Sense P
•
Lane Departure Alert (LDA) w/Steering Assist Lane Keeping Assist
•
Lane Departure Alert (LDA) w/Steering Assist Lane Departure Warning
•
Low Tire Pressure Warning
•
Dual Stage Driver And Passenger Front Airbags
•
Curtain 1st And 2nd Row Airbags
•
Airbag Occupancy Sensor
•
Driver Knee Airbag, Rear Side-Impact Airbag and Passenger Cushion Front Airbag
•
Rear Child Safety Locks
•
Outboard Front Lap And Shoulder Safety Belts -inc: Rear Centre 3 Point, Height Adjusters and Pretensioners
•
Back-Up Camera
Collapse all
AIR CONDITIONING EXCISE TAX
•
FEDERAL AIR CONDITIONING EXCISE TAX
OPTION PACKAGE
•
CH-R FWD XLE GRADE
•
CH-R FWD XLE PREMIUM PACKAGE / -inc: Blind Spot Monitor w/Rear Cross Traffic Alert, Wheels: 18" Aluminum Alloy, Power Folding Mirrors, Tires: P225/50R18, Puddle Lamps, Smart Key w/Push Button Start
PRIMARY PAINT
•
SILVER KNOCKOUT METALLIC
•
MAGNETIC GREY METALLIC
•
BLACK SAND PEARL
•
BLUE ECLIPSE METALLIC
•
BLIZZARD PEARL
•
RUBY FLARE PEARL
•
BLUE ECLIPSE METALLIC W/WHITE ROOF
•
RADIANT GREEN MICA W/WHITE ROOF
•
RUBY FLARE PEARL W/WHITE ROOF
PAINT SCHEME
•
STANDARD PAINT
SEAT TRIM
•
BLACK, FABRIC SEAT MATERIAL
•
BLACK, FABRIC SEAT MATERIAL
•
BLACK, FABRIC SEAT MATERIAL
•
BLACK, FABRIC SEAT MATERIAL
•
BLACK, FABRIC SEAT MATERIAL
ADDITIONAL EQUIPMENT
•
WHEELS: 18" ALUMINUM ALLOY
•
TIRES: P225/50R18
Consumer information
View less
Collapse all
Warranty
Basic Years
3
Basic Miles/km
60,000
Drivetrain Years
5
Drivetrain Miles/km
100,000
Corrosion Years
5
Corrosion Miles/km
Unlimited
Roadside Assistance Years
3
Roadside Assistance Miles/km
Unlimited
Recall
NHTSA CAMPAIGN ID
17V717000
Mfg's Report Date
NOV 14, 2017
Component
PARKING BRAKE
Potential Number of Units Affected
28764
Summary
Toyota Motor Engineering & Manufacturing (Toyota) is recalling certain 2018 Toyota CH-R vehicles. The electronic parking brake (EPB) may not operate properly, possibly causing the parking brake not to disengage after it is applied or prevent it from being applied. As such, these vehicles fail to comply with the requirements of Federal Motor Vehicle Safety Standard FMVSS number 135, "Light Vehicle Brake Systems."
Consequence
If the EPB cannot be applied, there is an increased risk of a vehicle rollaway if the vehicle is parked on a hill without being placed into "Park."
Remedy
Toyota has notified owners, and dealers will update the programming of the skid control ECU as necessary, free of charge. The recall began on November 30, 2017. Owners may contact Toyota at 1-800-331-4331. Toyota's number for this recall is H0W.
Dates of Manufacture
FEB 01, 2017 to OCT 16, 2017
Manufacturer Recall No.
H0W
News - Crash Test Results
Overall Rating
* * * * *
Overall Frontal Barrier Crash Rating
* * * *
Frontal Barrier Crash Rating Driver
* * * * *
Frontal Barrier Crash Rating Passenger
* * * *
Overall Side Crash Rating
* * * * *
Side Barrier Rating
* * * * *
Side Barrier Rating Driver
* * * * *
Side Barrier Rating Passenger Rear Seat
* * * * *
Side Pole Rating Driver Front Seat
* * * * *
Male/Female Dummy Note
Male: Average sized adult male dummy in 35-MPH crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs. Female: Small-sized adult female dummy in 35-mph crash into fixed barrier. Rating is evaluation of injury to head, neck, chest, legs.
Combined Side Rating Front Seat
* * * * *
Combined Side Rating Rear Seat
* * * * *
Rollover Rating
* * * *
Rollover Rating Dynamic Test Result
No Tip
Risk of Rollover
14.20%
Rollover Note
Dynamic (moving) test results (Tip or No Tip) and measured rollover-related properties determine vehicle's risk of rollover in single vehicle crash and its rollover rating. The Rollover Resistance Rating utilizes a "fishhook" maneuver which is a series of abrupt turns at varying speeds to see how "top-heavy" a vehicle is.
